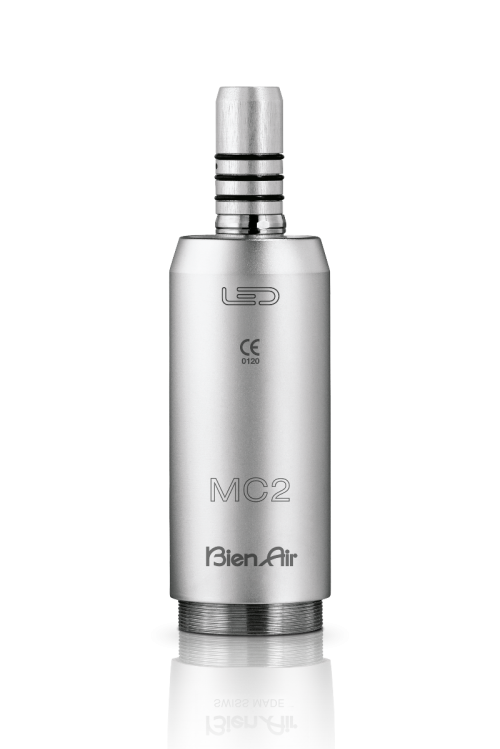

The MC2 is the most widely used electric micromotor in the world. Prized and recommended for its reliability and endurance, it has been proving its worth for many years. With a rotation speed ranging from 60 to 40,000 rpm, the performance it offers is remarkable.
The MC2 micromotor: Swiss-Made design at an attractive price. Also available in MicroSeries version with short nose and LED light with adjustable intensity. Now also available as an upgrade set for your old MC2 Isolite 300.
Reference:
MC2 LED 1600681-001
MC2 Isolite 300 with light 1600078-001
MC2 IR 1600073-001
All electric micromotors are made up of a rotor and a stator. The rotation is generated by magnets interacting with an electric current flowing through a wire coil. In the case of brush micromotors, the coils are located on the rotor. Electrical power is supplied to the coils through carbon brushes located on the stator. The electrical current in the coil interacts with the magnets of the stator, thus generating rotation.
Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30 percent shorter and 23 percent lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.
| MC2 LED | MC2 Isolite 300 with light | MC2 IR | MC3 LED | |
|---|---|---|---|---|
| Applications | Restorative, Prophylaxis | Restorative, Prophylaxis | Restorative, Prophylaxis | Restorative, Prophylaxis |
| Type | With brushes, internal spray | With brushes, internal spray | With brushes, internal spray | With brushes, internal spray |
| Speed range | 60-40,000 rpm | 60-40,000 rpm | 60-40,000 rpm | 60-40,000 rpm |
| Max torque | 2 Ncm | 2 Ncm | 2 Ncm | 2.8 Ncm |
| Torque control | No | No | No | No |
| Weight (g) | 110 g | 97 g | 110 g | 100 g |
| Dimensions | Ø 23 x 79 mm | Ø 23 x 79 mm | Ø 23.5 x 52 mm (without e-type connection) | Ø 21 x 95 mm |
| Light | LED with adjustable intensity | Bulb | No | LED with adjustable intensity |
| Max noise level, compliant with ISO 14457 | 54 dBA | 54 dBA | 50 dBA | 54 dBA |
| Sterilisable | No | No | Yes, sleeve only | No |
| Hose rotation | 0° | 0° | 0° | 400° |
| Warranty | 1.5 to 2.5 years 1 | 1.5 to 2.5 years 1 | 1.5 years 1 | 1.5 to 2.5 years 1 |
| Reference | MC2 LED 1600681-001 | MC2 Isolite 300 with light 1600078-001 | MC2 IR 1600073-001 |
MC3 LED 1600680-001 MC3 LK with light 1600077-001 MC3 IR without light 1600071-001 |
1 1.5-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.
