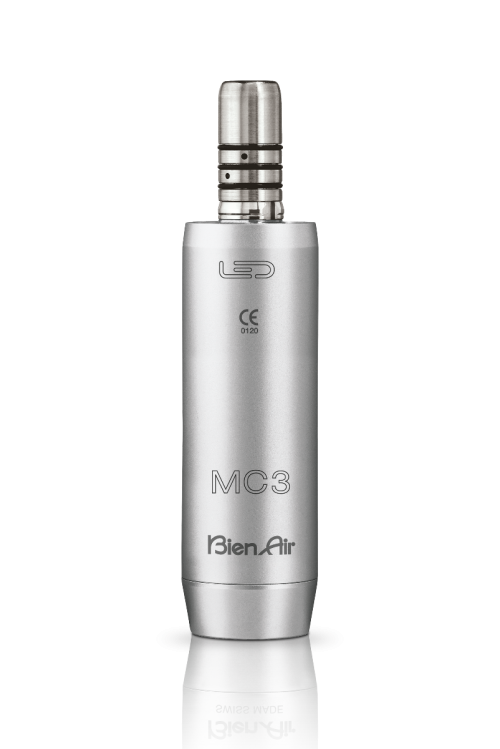

With vibration-free operation from 60 to 40,000 rpm, the MC3 brush micromotor has a versatility that sets it apart. Also available in Micro-Series version with short nose and LED light with adjustable intensity.
Prized and recommended for its reliability and endurance, the MC3 has been proving its worth for many years. With a rotation speed ranging from 60 to 40,000 rpm, the performance it offers is remarkable.
Reference:
MC3 LED 1600680-001
MC3 LK with light 1600077-001
MC3 IR without light 1600071-001
All electric micromotors are made up of a rotor and a stator. The rotation is generated by magnets interacting with an electric current flowing through a wire coil. In the case of brush micromotors, the coils are located on the rotor. Electrical power is supplied to the coils through carbon brushes located on the stator. The electrical current in the coil interacts with the magnets of the stator, thus generating rotation.
Complex mechanical design (rotor: multiple windings, collector and brushes, stator: permanent magnet). The brushes wear out so they must be regularly replaced (approximately 18-24 months in a dental micromotor). The carbon dust from the brushes disperses in the micromotor and can reduce the life of the micromotor bearings. The carbon brushes can cause interference with other electronic devices because of their constant interaction with the electrical components in the micromotor. The carbon brushes cannot be washed or sterilized as they absorb moisture generated from an air compressor.
Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30 percent shorter and 23 percent lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.
| MC3 LED | MC2 LED | MC2 Isolite 300 with light | MC2 IR | |
|---|---|---|---|---|
| Applications | Restorative, Prophylaxis | Restorative, Prophylaxis | Restorative, Prophylaxis | Restorative, Prophylaxis |
| Type | With brushes, internal spray | With brushes, internal spray | With brushes, internal spray | With brushes, internal spray |
| Speed range | 60-40,000 rpm | 60-40,000 rpm | 60-40,000 rpm | 60-40,000 rpm |
| Max torque | 2.8 Ncm | 2 Ncm | 2 Ncm | 2 Ncm |
| Torque control | No | No | No | No |
| Weight (g) | 100 g | 110 g | 97 g | 110 g |
| Dimensions | Ø 21 x 95 mm | Ø 23 x 79 mm | Ø 23 x 79 mm | Ø 23.5 x 52 mm (without e-type connection) |
| Light | LED with adjustable intensity | LED with adjustable intensity | Bulb | No |
| Max noise level, compliant with ISO 14457 | 54 dBA | 54 dBA | 54 dBA | 50 dBA |
| Sterilisable | No | No | No | Yes, sleeve only |
| Hose rotation | 400° | 0° | 0° | 0° |
| Warranty | 1.5 to 2.5 years 1 | 1.5 to 2.5 years 1 | 1.5 to 2.5 years 1 | 1.5 years 1 |
| Reference |
MC3 LED 1600680-001 MC3 LK with light 1600077-001 MC3 IR without light 1600071-001 |
MC2 LED 1600681-001 | MC2 Isolite 300 with light 1600078-001 | MC2 IR 1600073-001 |
1 1.5-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.
