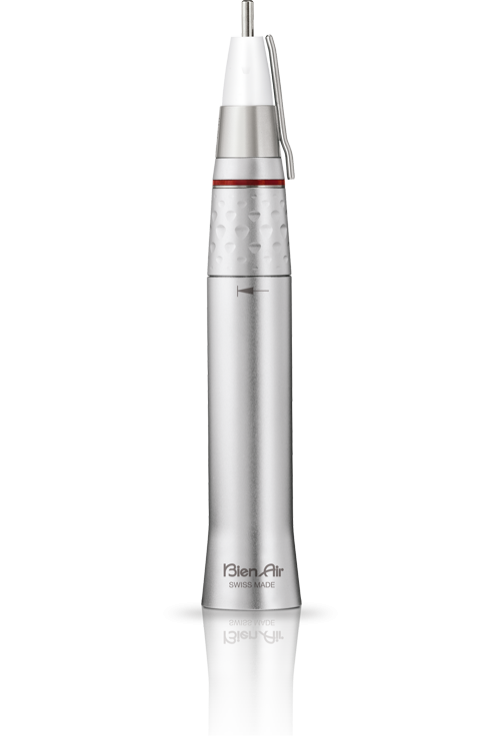

PM 1:2 Bien-Air’s PM 1:2 Impaction Drill.
Unfaltering Precision
for Enduring Performance.

A best seller in oral maxillofacial surgery, the PM 1:2 is the epitome of what Bien-Air’s Swiss precision brings to uncompromised quality and reliability. Newly improved infection control features position this straight handpiece at the forefront of patient safety and, in turn, afford it with significantly prolonged service life. With Bien-Air’s PM 1:2, confidently dispose of all uncertainties and get ready to outperform yourself.

Safe and Durable.Aside from its primary function of thoroughly cooling the operative field, the PM 1:2’s external irrigation system – with sterile disposable tubing – complies with the highest hygiene standards in oral surgery. Complemented with a new single-use bur guard preventing fluid infiltration in both the shank and the motor, the risk of overheating and premature handpiece failure is significantly minimized.

Practical and Ergonomic. The optimal diameter and height of the PM 1:2’s promotes near unobstructed intraoral visibility and makes for a less invasive approach to extract impacted molars.

Fast and Reliable. When used with Bien-Air’s prize-winning line of micromotors, the PM 1:2 allows for shorter procedure times, reduced discomfort for patients, and higher practice productivity. The most advanced engineering techniques, skilled company know-how, and up to 2 years of warranty put in your hands the first-class dependability our competitors have been trying to replicate for over 50 years.

Use the PM 1:2 handpiece with Bien-Air’s revolutionary iChiropro system to enjoy greater power control, pre-programmed operating sequences, multi-user settings, and patient data storage.

Learn More

Reference:

PM 1:2 1600436-001

PM 1:2


Cutting time

toothCutting

The high rotational speed reduces cutting time by 70 % (12 seconds to completely sec- tion a tooth), while significantly reducing the force required.



Bur guard Technology

BurGuard

The PM 1:2 is also equipped with a bur guard preventing fluid infiltration in both the handpiece and the motor. The risk of overheating and premature handpiece failure is significantly minimized.

Technical Data

PM 1:2
TypeStraight handpiece
Transmission ratio1:2
Speed range200-80,000 rpm
External irrigationOn detachable sleeve
Detachable sleevesWith irrigation tube, supplied with each instrument and Bur Guard sterile sleeve
CouplingType E as per ISO 3964
Locking systemLocking ring
Bur dimensionø 2.35 mm / type 2, as per ISO 1797
Cleaning / sterilisationThermo Washer Disinfectable/Steam autoclave up to 135 °C
Warranty1 year
AccessoriesSleeve with irrigation hose 1501318-001
Bur guard sterile sleeve 1501317-100
Reference PM 1:2 1600436-001
PM 1:2
Type Straight handpiece
Transmission ratio 1:2
Speed range 200-80,000 rpm
External irrigation On detachable sleeve
Detachable sleeves With irrigation tube, supplied with each instrument and Bur Guard sterile sleeve
Coupling Type E as per ISO 3964
Locking system Locking ring
Bur dimension ø 2.35 mm / type 2, as per ISO 1797
Cleaning / sterilisation Thermo Washer Disinfectable/Steam autoclave up to 135 °C
Warranty 1 year
Accessories Sleeve with irrigation hose 1501318-001
Bur guard sterile sleeve 1501317-100
Reference PM 1:2 1600436-001
