S001 & SF 811

Pneumatic stations for dental turbines Extremely simple and robust in design, these Bien-Air pneumatic systems have become the tools of choice for ceramic and prosthetic specialists worldwide. In particular, they incorporate TD turbines which are celebrated as the best in their class.

With a rotation speed of 300,000 rpm, they prove ideal for delicate, precise work. They work marvellously for machining crevices on occlusal surfaces, on ceramic and zirconia. The station precisely controls and adjusts the pressure of the turbine and is equipped with an on/off control, operated by foot pedal. The foot pedal also controls the operation of the TDS 890 turbine spray. A unique dust shield contributes to its long service life.

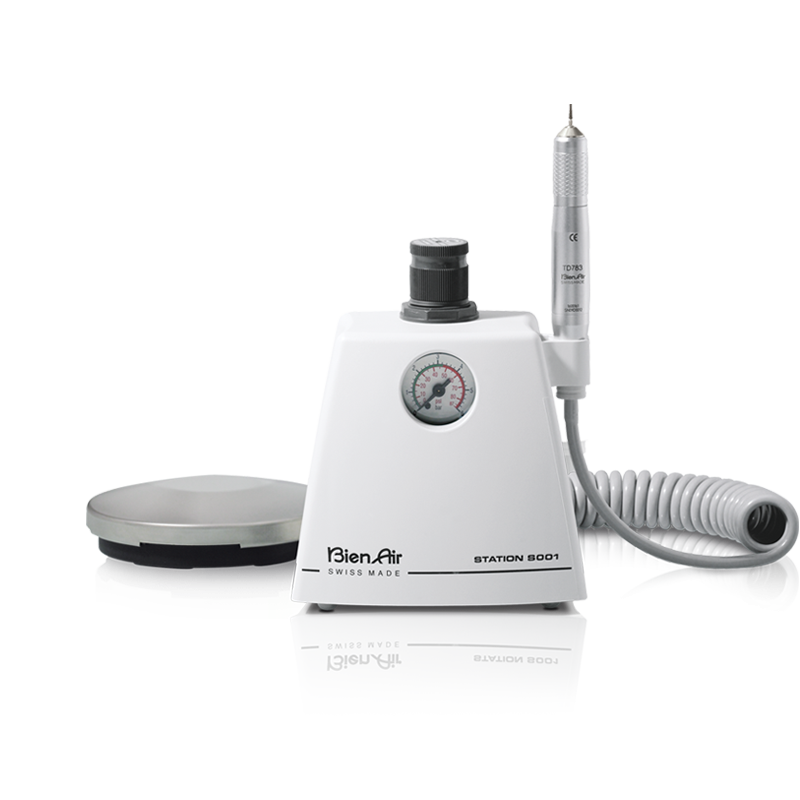

Simple and efficient controls, fitted with the TD 783 straight turbine. A choice of two versions, the S001 table model, stable yet compact, or the SF 811 wall or table-leg mounted unit, for extra working space.

Learn More

Reference:

SET TD 783 Table Top 1700126-001

  • turbine speed up to 300,000 rpm.
  • turbine ideal for delicate, precise work
  • pedal to adjust turbine speed
  • straight hose in grey silicone, internal Ø 1/8"
  • reliability under all conditions

Technical Data

SET TD 783 Table Top
TypePneumatic module, tabletop model
Air pressure Max.250 kPa - 300 kPa
Tank -
Spray Max.120 ml/min
Pedal Pneumatic
Dimensions (L x H x D)110 x 135 x 162 mm
SafetyIn conformity with EC directive 98/37/EC
Straight turbine with internal sprayTD 783
TypeBall-bearing turbine protected by a special dustproof shield
Speed of rotation300,000 tr/min
Air flow35 litres/min. on average
Bur changing mechanism Friction Grip (FG)
BursBur ø 1.60 mm as per ISO 1797 - type 3
HoseGrey straight silicone, with 4-hole coupling
Weight (g)60
Cleaning With Bien-Air Spraynet®
LubricationWith Bien-Air Lubrimed® grease
Reference SET TD 783 Table Top 1700126-001
SET TD 783 Table Top
Type Pneumatic module, tabletop model
Air pressure Max. 250 kPa - 300 kPa
Tank -
Spray Max. 120 ml/min
Pedal Pneumatic
Dimensions (L x H x D) 110 x 135 x 162 mm
Safety In conformity with EC directive 98/37/EC
Straight turbine with internal spray TD 783
Type Ball-bearing turbine protected by a special dustproof shield
Speed of rotation 300,000 tr/min
Air flow 35 litres/min. on average
Bur changing mechanism Friction Grip (FG)
Burs Bur ø 1.60 mm as per ISO 1797 - type 3
Hose Grey straight silicone, with 4-hole coupling
Weight (g) 60
Cleaning With Bien-Air Spraynet®
Lubrication With Bien-Air Lubrimed® grease
Reference SET TD 783 Table Top 1700126-001
