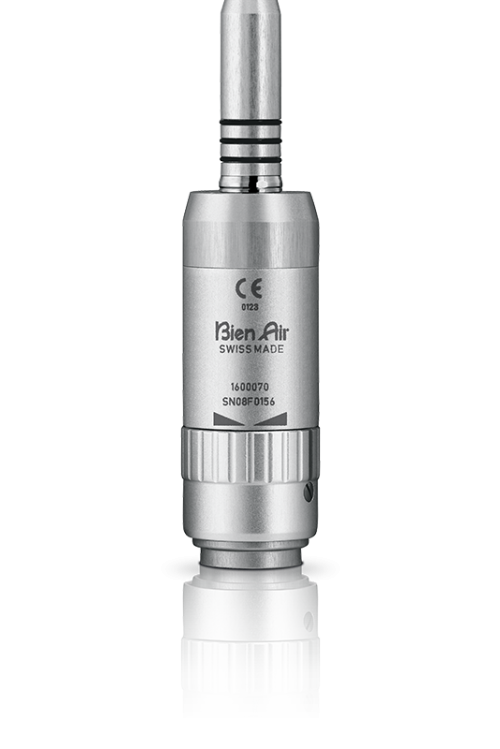

AQUILON 830

Offering high torque at low speed, the Aquilon is a high-performance air micromotor at a very competitive price. Equipped with a ceramic stator, it is simple to maintain and has a particularly long service life. Its rotating speed ranges from 5,000 to 20,000 rpm with forward and reverse operation. It is quick to connect, thanks to its rotating Unifix quick-connect coupling.

Reference:

AQUILON 830 1600070-001

AQUILON 830


Technical Data

AQUILON 830
ApplicationsRestorative, Prophylaxis
Typeinternal spray
Speed range5000-20,000 rpm
Max torque2.5 Ncm
Torque controlNo
Weight (g)90 gr
Dimensions Ø 23 x 65 mm
LightNo
Max noise level, compliant with ISO 1149870 dBA
Sterilisable No
Hose rotation400°
Warranty1 year to 2  years 1
Reference AQUILON 830 1600070-001
AQUILON 830
Applications Restorative, Prophylaxis
Type internal spray
Speed range 5000-20,000 rpm
Max torque 2.5 Ncm
Torque control No
Weight (g) 90 gr
Dimensions Ø 23 x 65 mm
Light No
Max noise level, compliant with ISO 11498 70 dBA
Sterilisable No
Hose rotation 400°
Warranty 1 year to 2  years 1
Reference AQUILON 830 1600070-001

1 1-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.
