iChiropro Ultimate Implantology.

The unique and revolutionary iChiropro is the perfect partner for your implantology and dental surgery operations.

Controlled by an iPad application, this intuitive system supports you in every step of your procedures. Simply select the pre-programmed operation of your choice and the iChiropro will provide instructions and guidance. For optimal patient file analysis and management, the application can be used to import data from the coDiagnostiXTM software and you can also save and export your operation reports with a single click.

Simplicity, comfort and modernity: discover a new work philosophy!





Reference:

iChiropro set without Micro-Series CA 20:1 L 1700439-00

iChiropro set with Micro-Series CA 20:1 L 1700440-001

iChiropro 1600784-001

THE APPLICATION

Committed to offering you the best, Bien-Air provides regular updates for its iChiropro application. These upgrades are free of charge and are designed to facilitate your day-to-day work.

What's new on version 2.3?

For improved ease of use and enhanced safety, your patient's bone density information can now be edited at any time during an operation. The speed and torque settings are then instantly adjusted, ensuring that the procedure is adapted to the patient's needs.

To enable you to establish complete patient files, you can now indicate the presence of risk factors (e.g. smoking, osteoporosis). A detailed operation report containing key indicators such as the ISQ, bone density specific to the implant site and the force used to fit the implant is also now available for each operation.

Compatible with coDiagnostiX

Optimized and straight-
forward procedures

The operating sequence settings for the main implant systems are integrated into a library that is constantly being updated. It can be organised into favourites.
Parameters can be changed at any point during the procedure. Operating sequences can be automatically adjusted according to bone density . Multiple users management with recording of respective settings.

Simpler than ever full
digital workflow

Handling is reduced during the procedure as the various parameters for each operating sequence can be set in advance. Quick, easy import of planning data from the coDiagnostiX™ software.
Information relating to implants is safely and automatically recorded by the barcode scanner, ensuring full traceability.

All the information you need during a surgery available when you need it

A navigation area enables the information needed during the procedure to be accessed quickly, at any time, making interventions preparation easier. This include burs pictures and guided surgery procedure information such as sleeve diameter and position, drill handle and length . A pop-up window displaying instruments positions in the surgical cassette ensures quicker tool selection . The coDiagnostiX™ planning report can be displayed at any time during procedure.

Multiple implant procedures

Up to eight implants can be placed simultaneously. The same procedural step can be carried out on all the implants in turn. This results in reduced handling of instruments and settings during the procedure, ensuring increased efficiency. You can use the pedal to switch from one implant to the next, without the need to touch the iPad screen throughout your procedure.

Full documentation and traceability

All the data relating to a patient can be consulted on the iPad in a personalised file. Data relating to procedures are automatically integrated into the file during the procedure. Information relating to implants, ensuring traceability, can also be quickly accessed. The content of the file can be easily exported to other peripherals or online storage platforms.



THE ICHIROPRO SYSTEM COMES WITH

MXi_LED

MX-i LED Micromotor

High torque for unrivalled working comfort, at both high and low speeds. With ceramic ball bearings to guarantee exceptional service life and reliability.

CA-20-1

CA 20:1 L Micro-Series
Contra-Angle

Fits into the physiodispenser’shandpiece’s internal irrigation system for smooth and efficient performance and improved service life. Equipped with a remarkably small head and a double LED system for uniform lighting regardless the speed of rotation.

PM-1-2

PM 1:2 Straight Handpiece

Designed to withstand the stresses caused from repeated lateral pressure. With a new bur guard to prevent the physiological liquid from returning into the physiodispenser – for impeccable hygiene.

foot pedal

Multifunctional Foot Pedal

To command the micromotor’s speed and rotation variation, toggle the peristaltic pump, and control the operation sequences.

irrigation lines

Disposable Irrigation Lines

Bien-Air has designed a patented peristaltic pump. Our disposable irrigation lines incorporate an insertion support ensuring simplified handling and perfect hygiene.



iPad Screen

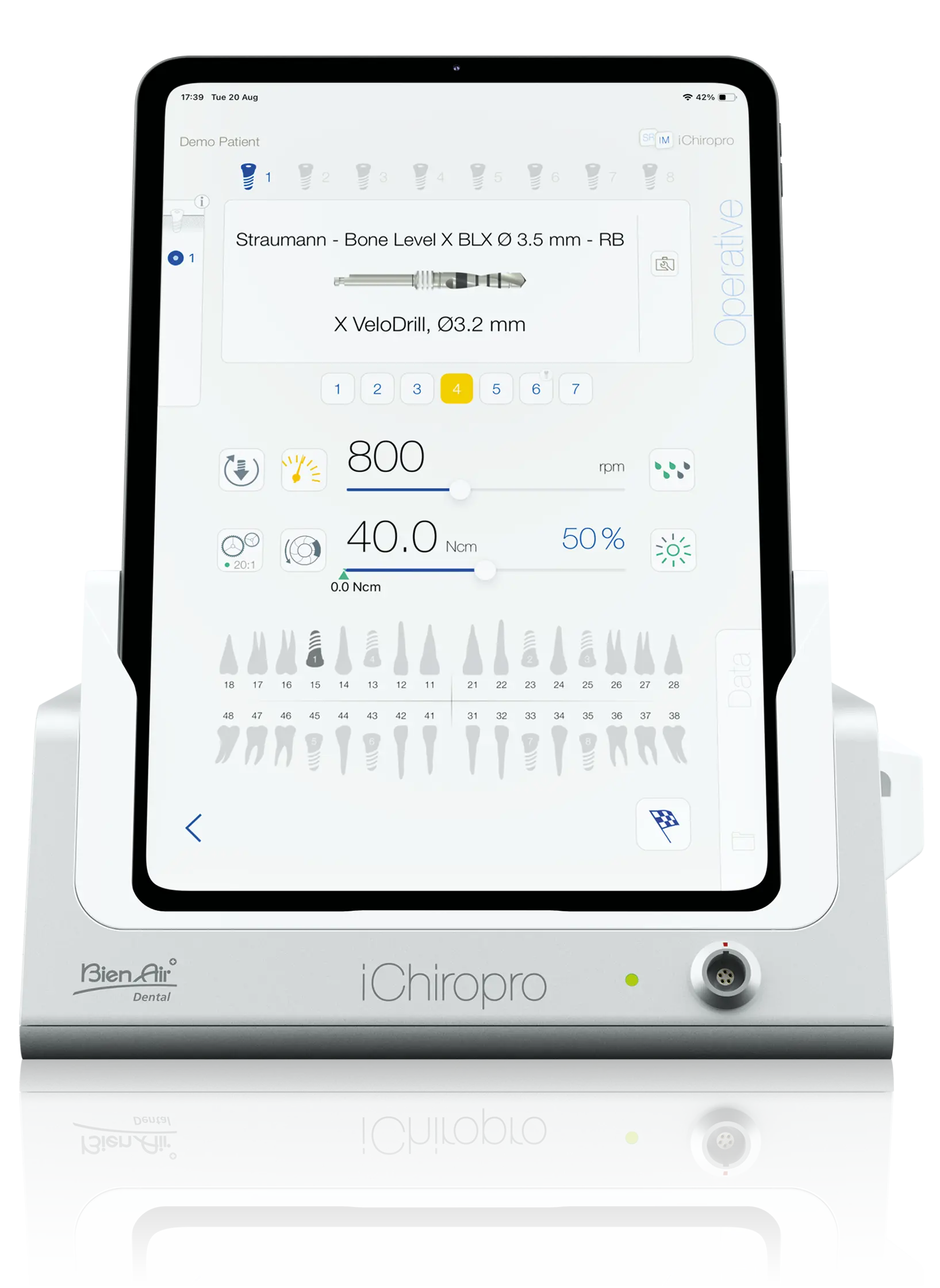

The iChiropro is compatible with the Apple® iPad Air and iPad Air 2. Pleasure, performance and ease-of-use guaranteed, using the most popular tablet on the planet.



iChiropro is pre-programmed for the following implant systems:

iChiropro Chiropro Chiropro L
Implantology procedure xxx
Surgery + third molar extraction procedures x-x
Library of implant systems >30088
Guided surgery procedure information x--
Digital workflow (import data from planning software CodiagnostiXTM) x--
Full procedure documentation & traceability x--
Export procedure data (pdf, xls, csv) x--
Max. Torque at the rotary instrument in implant mode 70 Ncm 55 Ncm55 Ncm
Device warranty 2 to 3 years12 to 3 years 1 2 to 3 years1
MX-i specificationsMX-i LEDMX-iMX-i LED
TypeBrushless, autoventilated Brushless, autoventilatedBrushless, autoventilated
Speed range100 - 40,000 rpm 100-40,000 rpm100 - 40,000 rpm
Max torque5 Ncm 5 Ncm5 Ncm
Led light (MX-i micromotor + CA 20:1) x-x
Brushless sensorless technology xxx
Self-ventilated technologyxxx
Torque controlxxx
Weight (g)115115115
Dimensions ø 23 x 91 mm ø 23 x 91 mmø 23 x 91 mm
Max noise level, compliant with ISO 1149853 dBA53 dBA53 dBA
Sterilisable Yes + thermal desinfector Yes + thermal desinfectorYes + thermal desinfector
Ball bearingsLife-time lubricated ball bearings Life-time lubricated ball bearingsLife-time lubricated ball bearings
Hose rotation
MX-i warranty3 to 4 years 23 to 4 years 23 to 4 years 2
Reference iChiropro 1600784-001
iChiropro set with Micro-Series CA 20:1 L 1700440-001
iChiropro set without Micro-Series CA 20:1 L 1700439-00
Chiropro 1600724-001
Chiropro set with CA 20:1 1700388-001
Chiropro set without CA 1700387-001
Chiropro L 1600613-001
Chiropro L set with Micro-Series CA 20:1 L 1700307-001
Chiropro L set without CA 1700298-001
iChiropro
Implantology procedure x
Surgery + third molar extraction procedures x
Library of implant systems >300
Guided surgery procedure information x
Digital workflow (import data from planning software CodiagnostiXTM) x
Full procedure documentation & traceability x
Export procedure data (pdf, xls, csv) x
Max. Torque at the rotary instrument in implant mode 70 Ncm
Device warranty 2 to 3 years1
MX-i specifications MX-i LED
Type Brushless, autoventilated
Speed range 100 - 40,000 rpm
Max torque 5 Ncm
Led light (MX-i micromotor + CA 20:1) x
Brushless sensorless technology x
Self-ventilated technology x
Torque control x
Weight (g) 115
Dimensions ø 23 x 91 mm
Max noise level, compliant with ISO 11498 53 dBA
Sterilisable Yes + thermal desinfector
Ball bearings Life-time lubricated ball bearings
Hose rotation
MX-i warranty 3 to 4 years 2
Reference iChiropro 1600784-001
iChiropro set with Micro-Series CA 20:1 L 1700440-001
iChiropro set without Micro-Series CA 20:1 L 1700439-00
Chiropro
Implantology procedure x
Surgery + third molar extraction procedures -
Library of implant systems 8
Guided surgery procedure information -
Digital workflow (import data from planning software CodiagnostiXTM) -
Full procedure documentation & traceability -
Export procedure data (pdf, xls, csv) -
Max. Torque at the rotary instrument in implant mode 55 Ncm
Device warranty 2 to 3 years 1
MX-i specifications MX-i
Type Brushless, autoventilated
Speed range 100-40,000 rpm
Max torque 5 Ncm
Led light (MX-i micromotor + CA 20:1) -
Brushless sensorless technology x
Self-ventilated technology x
Torque control x
Weight (g) 115
Dimensions ø 23 x 91 mm
Max noise level, compliant with ISO 11498 53 dBA
Sterilisable Yes + thermal desinfector
Ball bearings Life-time lubricated ball bearings
Hose rotation
MX-i warranty 3 to 4 years 2
Reference Chiropro 1600724-001
Chiropro set with CA 20:1 1700388-001
Chiropro set without CA 1700387-001
Chiropro L
Implantology procedure x
Surgery + third molar extraction procedures x
Library of implant systems 8
Guided surgery procedure information -
Digital workflow (import data from planning software CodiagnostiXTM) -
Full procedure documentation & traceability -
Export procedure data (pdf, xls, csv) -
Max. Torque at the rotary instrument in implant mode 55 Ncm
Device warranty 2 to 3 years1
MX-i specifications MX-i LED
Type Brushless, autoventilated
Speed range 100 - 40,000 rpm
Max torque 5 Ncm
Led light (MX-i micromotor + CA 20:1) x
Brushless sensorless technology x
Self-ventilated technology x
Torque control x
Weight (g) 115
Dimensions ø 23 x 91 mm
Max noise level, compliant with ISO 11498 53 dBA
Sterilisable Yes + thermal desinfector
Ball bearings Life-time lubricated ball bearings
Hose rotation
MX-i warranty 3 to 4 years 2
Reference Chiropro L 1600613-001
Chiropro L set with Micro-Series CA 20:1 L 1700307-001
Chiropro L set without CA 1700298-001

1 2-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.

2 3-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.
