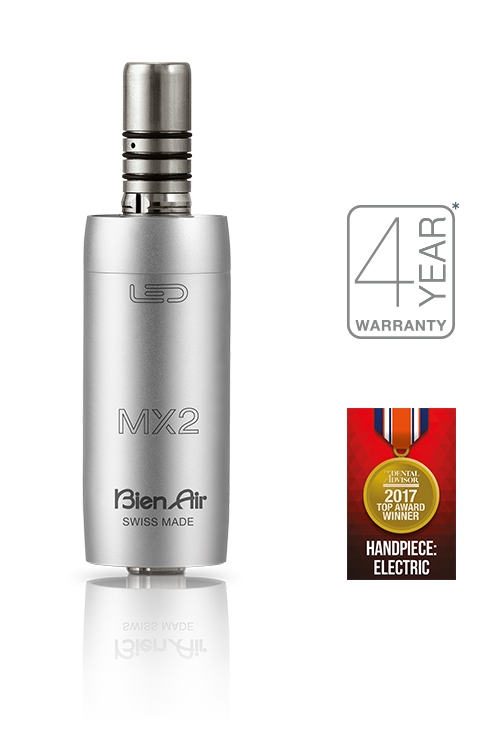

MX2 LED The little prodigy

Coupled with the new Bien-Air Micro-Series instruments, you will benefit from a unit that is 30% shorter and 23% lighter than previous generation. The result is unparalleled balance and comfort, constant power, perfect control of the speed, torque and reversal of the direction of rotation. Thanks to Smart-Logic electronic control, the MX2 is exceptionally stable and powerful, even at low speeds (100 rpm). This means just two instruments are required to carry out all operations. The MX2 LED proves itself to be the ideal companion for endodontics. * 3-year standard warranty and 1-year optional warranty available through Bien-Air's PlanCare extended warranty program.

Reference:

MX2 LED 1600677-001

MX2 LED


How do MX2 LED brushless micromotors work?

Like any other electric micromotor, brushless micromotors consist of a rotor and a stator. Unlike the brush micromotor, the rotor consists of a permanent magnet, while the coils are mounted to the stator. The mechanical switching function, implemented by the brush and collector combination in a carbon brush-type micromotor, is replaced by a sophisticated electronic drive that became possible only with the development of high-speed and powerful microprocessors. The electronic drive creates a rotating electric field in the stator that interacts with the permanent magnet.

Brushless



Brushless technology A new dimension

  • Greater Power and More Torque. A major attribute of Bien-Air micromotors is their elevated power output with constant torque for swift and effortless use.
  • Accurate Command. The proprietary Smart Logic™ electronic control lends Bien-Air micromotors a step-less, vibration-less rotation for the most meticulous and precise dental work.
  • Compact and Lightweight. Bien-Air micromotors are significantly shorter and lighter than conventional models. This results in optimal grip and balance as well as reduced hand fatigue.
  • Maintenance-Free. Bien-Air micromotors’ ball bearings are greased for life making post-usage lubrication expendable. Built to withstand repeated sterilization cycles, the strictest hygiene standards are upheld.
  • Easy and economical to maintain
  • 3 Years Warranty
Graphic_BA_EN_iOPTIMA_MX2



Micro-series. Welcome to a new dimension.

Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30 percent shorter and 23 percent lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.

MicroSeries
balanceMicroSeries



Noise levels reduced and less vibrations

A Bien-Air electric micromotor reduces noise levels by 2 compared to an air turbine. This greatly decreases patient anxiety and discomfort and allows the dentist to work more efficiently. It also vibrates considerably less. This offers greater cutting precision and a smoother finish.

Graph_NoiseLevel
Graph_Vibration
MX2 LED MCX LED MX-i LED
ApplicationsRestorative, Prophylaxis, EndodonticsRestorative, Prophylaxis Implantology, Surgery
TypeBrushless, internal sprayBrushless, internal sprayBrushless, autoventilated
Speed range100-40,000 rpm1000-40,000 rpm100-40,000 rpm
Max torque3.5 Ncm2.5 Ncm 5 Ncm
Torque controlYesNoYes
Weight (g)90 gr79 gr115 gr
Dimensions Ø 21 x 50 mmØ 21 x 42 mmØ 23 x 91 mm
LightLED with adjustable intensityLED with adjustable intensityLED with adjustable intensity
Max noise level, compliant with ISO 1149851 dBA51 dBA53 dBA
Sterilisable YesYes Yes + thermal desinfector
Ball bearingsLife-time lubricated ball bearingsLife-time lubricated ball bearingsLife-time lubricated ball bearings
Hose rotation± 200°
Warranty3 to 4 years 13 to 4 years 13 to 4 years 1
Reference MX2 LED 1600677-001 MCX LED 1600751-001
MCX without light 1600780-001
MX-i LED 1600755-001
MX2 LED
Applications Restorative, Prophylaxis, Endodontics
Type Brushless, internal spray
Speed range 100-40,000 rpm
Max torque 3.5 Ncm
Torque control Yes
Weight (g) 90 gr
Dimensions Ø 21 x 50 mm
Light LED with adjustable intensity
Max noise level, compliant with ISO 11498 51 dBA
Sterilisable Yes
Ball bearings Life-time lubricated ball bearings
Hose rotation ± 200°
Warranty 3 to 4 years 1
Reference MX2 LED 1600677-001
MCX LED
Applications Restorative, Prophylaxis
Type Brushless, internal spray
Speed range 1000-40,000 rpm
Max torque 2.5 Ncm
Torque control No
Weight (g) 79 gr
Dimensions Ø 21 x 42 mm
Light LED with adjustable intensity
Max noise level, compliant with ISO 11498 51 dBA
Sterilisable Yes
Ball bearings Life-time lubricated ball bearings
Hose rotation
Warranty 3 to 4 years 1
Reference MCX LED 1600751-001
MCX without light 1600780-001
MX-i LED
Applications Implantology, Surgery
Type Brushless, autoventilated
Speed range 100-40,000 rpm
Max torque 5 Ncm
Torque control Yes
Weight (g) 115 gr
Dimensions Ø 23 x 91 mm
Light LED with adjustable intensity
Max noise level, compliant with ISO 11498 53 dBA
Sterilisable Yes + thermal desinfector
Ball bearings Life-time lubricated ball bearings
Hose rotation
Warranty 3 to 4 years 1
Reference MX-i LED 1600755-001

1 3-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.

MAINTENANCE OF MCX LED AND MX2 LED NON-CARBON MICROMOTORS

PREPARATION AND CLEANING
A.

DISCONNECT THE MOTOR FROM THE CABLE

B.

CLEAN UNDER RUNNING WATER AT <38°C

DISINFECTION
A.

DISINFECTION USING SURFACE DISINFECTANT (follow the manufacturer's instructions for use)

Do not immerse the instrument in a disinfectant bath

STERILISATION
A.

PLACE THE MOTOR IN A STERILISATION BAG

B.

STERILISE IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS

  • Instruments bearing the "135°C" symbol can be sterilised in an autoclave
