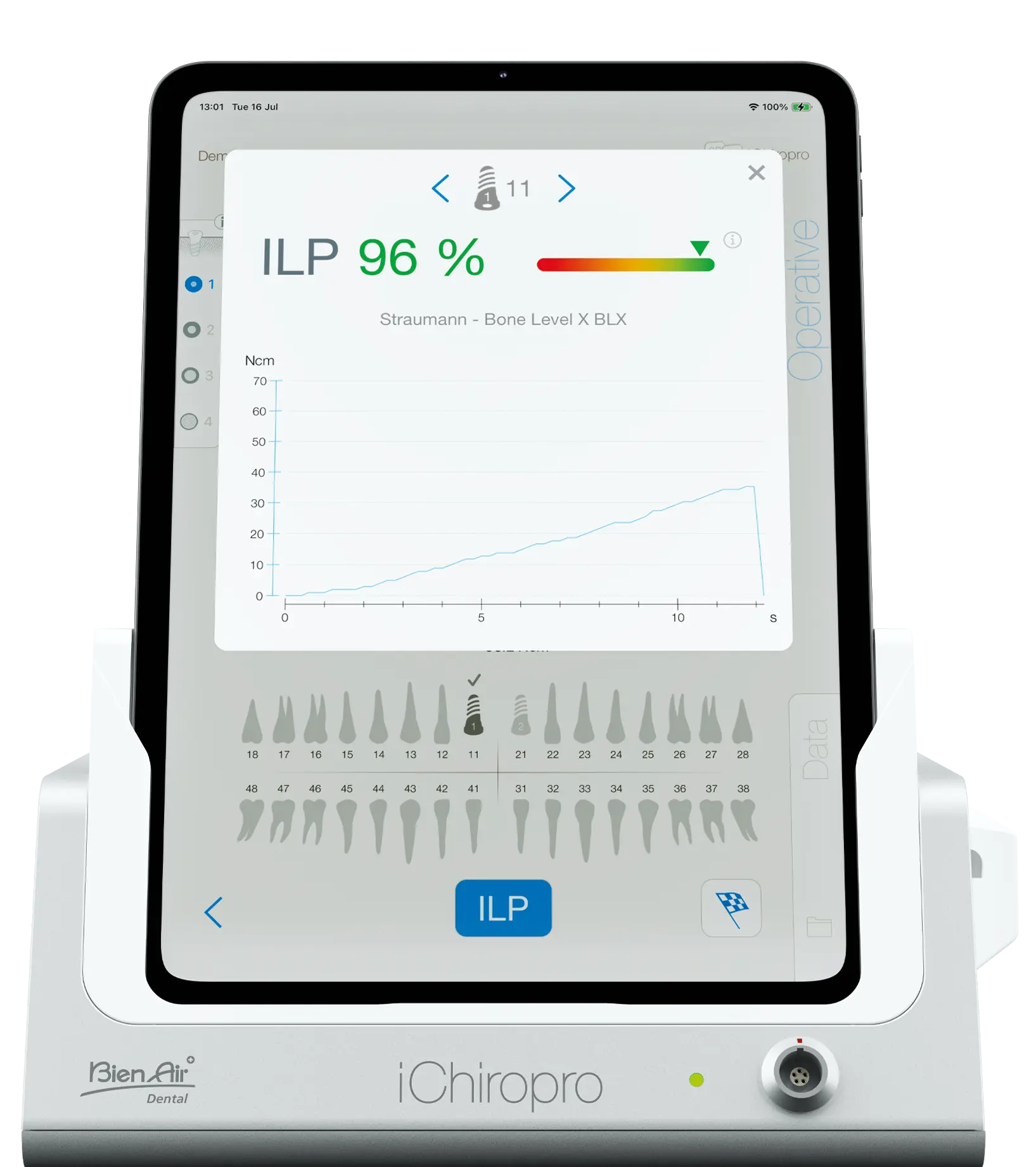

iCHIROPRO Ultimate Implantology.

The unique and revolutionary iChiropro is the perfect partner for your implantology and dental surgery operations. Controlled by an iPad application, this intuitive system supports you in every step of your procedures. Simply select the pre-programmed operation of your choice, and the iChiropro will provide instructions and guidance. For optimal patient file analysis and management, the application can be used to import data from the coDiagnostiX TM software, and you can also save and export your operation reports with a single click. Simplicity, comfort and modernity: discover a new work philosophy!

Reference:

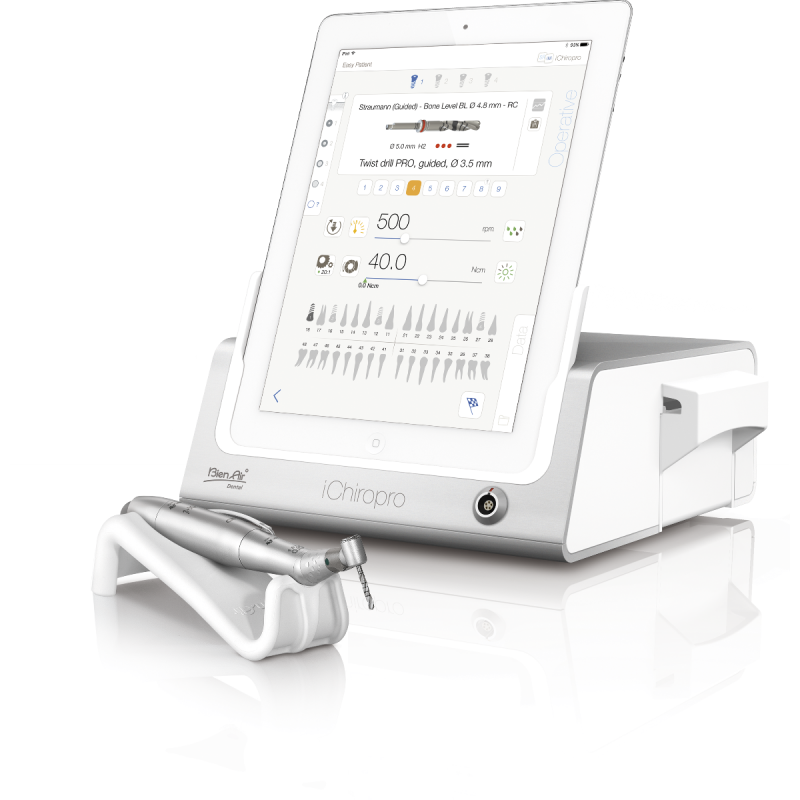

iCHIROPRO Implant set | With CA 20:1 L Micro-Series 1700440-001

iCHIROPRO 1700439-001

THE APPLICATION

Committed to offering you the best, Bien-Air provides regular updates for its iChiropro application. These upgrades are free of charge and are designed to facilitate your day-to-day work.

What's new?

For improved ease of use and enhanced safety, your patient's bone density information can now be edited at any time during an operation. The speed and torque settings are then instantly adjusted, ensuring that the procedure is adapted to the patient's needs.

To enable you to establish complete patient files, you can now indicate the presence of risk factors (e.g. smoking, osteoporosis). A detailed operation report containing key indicators such as the ISQ, bone density specific to the implant site and the force used to fit the implant is also now available for each operation.

Compatible with coDiagnostiX

Optimized and straight-
forward procedures

The operating sequence settings for the main implant systems are integrated into a library that is constantly being updated. It can be organised into favourites.
Parameters can be changed at any point during the procedure. Operating sequences can be automatically adjusted according to bone density . Multiple users management with recording of respective settings.

Simpler than ever full
digital workflow

Handling is reduced during the procedure as the various parameters for each operating sequence can be set in advance. Quick, easy import of planning data from the coDiagnostiX™ software.
Information relating to implants is safely and automatically recorded by the barcode scanner, ensuring full traceability.

All the information you need during a surgery available when you need it

A navigation area enables the information needed during the procedure to be accessed quickly, at any time, making interventions preparation easier. This include burs pictures and guided surgery procedure information such as sleeve diameter and position, drill handle and length . A pop-up window displaying instruments positions in the surgical cassette ensures quicker tool selection . The coDiagnostiX™ planning report can be displayed at any time during procedure.

Multiple implant procedures

Up to eight implants can be placed simultaneously. The same procedural step can be carried out on all the implants in turn. This results in reduced handling of instruments and settings during the procedure, ensuring increased efficiency. You can use the pedal to switch from one implant to the next, without the need to touch the iPad screen throughout your procedure.

Full documentation and traceability

All the data relating to a patient can be consulted on the iPad in a personalised file. Data relating to procedures are automatically integrated into the file during the procedure. Information relating to implants, ensuring traceability, can also be quickly accessed. The content of the file can be easily exported to other peripherals or online storage platforms.



ICHIROPRO SYSTEM EQUIPMENT

MXi_LED

MX-i LED Micromotor

High torque for unrivalled working comfort, at both high and low speeds. With ceramic ball bearings to guarantee exceptional service life and reliability.

CA-20-1

CA 20:1 L Micro-Series
Contra-Angle

Fits into the physiodispenser’shandpiece’s internal irrigation system for smooth and efficient performance and improved service life. Equipped with a remarkably small head and a double LED system for uniform lighting regardless the speed of rotation.

PM-1-2

PM 1:2 Straight Handpiece

Not included

Designed to withstand the stresses caused from repeated lateral pressure. With a new bur guard to prevent the physiological liquid from returning into the physiodispenser – for impeccable hygiene.

foot pedal

Multifunctional Foot Pedal

To command the micromotor’s speed and rotation variation, toggle the peristaltic pump, and control the operation sequences.

irrigation lines

Disposable Irrigation Lines

Bien-Air has designed a patented peristaltic pump. Our disposable irrigation lines incorporate an insertion support ensuring simplified handling and perfect hygiene.




iChiropro is pre-programmed for the following implant systems:

argon avinent bego biodenta BioHorizons Biomet 3i Bredent Medical bti Camlog dentegris Dentsply Implants Dio Implant easy_Implant EuroTeknika IDI klockner konus_dental MIS neodent Neoss Nobel Biocare phibo SIC Straumann Thommen Medical wego.png Winsix Zimmer C-TECH GC Implant Global D Meisinger Shinhung Sweden & Martina
Compatible Devices With App iCHIROPRO
iPad 5
iPad 6
iPad Air
iPad Air 2
iPad Pro 9.7
iPad 7
iPad Air 3
iPad 8
iPad 9


All iPad models with USB-C connector are NOT compatible.

Technical Data

iCHIROPRO CHIROPRO CHIROPRO PLUS
Implantology mode
Surgery mode-
Control Knob (sterilisable)-
Built-in surgical protocols--
Guided surgery protocols--
Digital workflow (import data from
CoDiagnostiXTM) planning software
--
Exportable surgical report--
Max. Torque at the rotary instrument in
implant mode
70 Ncm 70 Ncm80 Ncm
Dimensions L x W x H242mm x 244mm x 102mm240 mm x 240 mm x 102 mm240 mm x 240 mm x 102 mm
Weight2,8 Kg2.2 kg2.2 kg
Device warranty 2 years2 to 3 years 1 2 to 3 years 1
MX-i specificationsMX-i LED 1600755-001
Self-ventilated
MX-i LED Micromotor Not self-ventilated | REF 1601008-001MX-i LED 1600755-001
Self-ventilated
Micromotor Dimensions ø x L23 x 91mm23 x 83 mm23 x 91 mm
Micromotor Weight115g110 g115 gr
Reference

iChiropro set without Micro-Series
CA 20:1 L 1700439-001

iChiropro set without Micro-Series
CA 20:1 L 1700439-001
Chiropro 3rd Gen set without CA
1700708-001

Chiropro 3rd Gen set with
Micro-Series CA 20:1 L
1700707-001
Chiropro PLUS 3rd Gen set
without CA 1700710-001
CHIROPRO PLUS set | With 2 CA 20:1 L Micro-Series 1700709-001 + 1600692-001
CHIROPRO PLUS set | With CA 20:1 L Micro-Series 1700709-001
iCHIROPRO
Implantology mode
Surgery mode
Built-in surgical protocols
Guided surgery protocols
Digital workflow (import data from
CoDiagnostiXTM) planning software
Exportable surgical report
Max. Torque at the rotary instrument in
implant mode
70 Ncm
Dimensions L x W x H 242mm x 244mm x 102mm
Weight 2,8 Kg
Device warranty 2 years
MX-i specifications MX-i LED 1600755-001
Self-ventilated
Micromotor Dimensions ø x L 23 x 91mm
Micromotor Weight 115g
Reference

iChiropro set without Micro-Series
CA 20:1 L 1700439-001

iChiropro set without Micro-Series
CA 20:1 L 1700439-001
CHIROPRO
Implantology mode
Surgery mode -
Control Knob (sterilisable)
Guided surgery protocols -
Digital workflow (import data from
CoDiagnostiXTM) planning software
-
Exportable surgical report -
Max. Torque at the rotary instrument in
implant mode
70 Ncm
Dimensions L x W x H 240 mm x 240 mm x 102 mm
Weight 2.2 kg
Device warranty 2 to 3 years 1
MX-i specifications MX-i LED Micromotor Not self-ventilated | REF 1601008-001
Micromotor Dimensions ø x L 23 x 83 mm
Micromotor Weight 110 g
Reference Chiropro 3rd Gen set without CA
1700708-001

Chiropro 3rd Gen set with
Micro-Series CA 20:1 L
1700707-001
CHIROPRO PLUS
Implantology mode
Surgery mode
Control Knob (sterilisable)
Guided surgery protocols -
Digital workflow (import data from
CoDiagnostiXTM) planning software
-
Exportable surgical report -
Max. Torque at the rotary instrument in
implant mode
80 Ncm
Dimensions L x W x H 240 mm x 240 mm x 102 mm
Weight 2.2 kg
Device warranty 2 to 3 years 1
MX-i specifications MX-i LED 1600755-001
Self-ventilated
Micromotor Dimensions ø x L 23 x 91 mm
Micromotor Weight 115 gr
Reference Chiropro PLUS 3rd Gen set
without CA 1700710-001
CHIROPRO PLUS set | With 2 CA 20:1 L Micro-Series 1700709-001 + 1600692-001
CHIROPRO PLUS set | With CA 20:1 L Micro-Series 1700709-001

-

Maintenance

MAINTENANCE OF CONTRA-ANGLES AND HANDPIECES FOR SURGERY AND IMPLANTOLOGY

PREPARATION
A.

REMOVING THE INSTRUMENT

  • Remove the rotary instrument from the chuck mechanism
  • Disconnect the contra-angle from the motor
B.

PRE-DISINFECTION

  • External disinfection

Do not immerse the instrument in a disinfectant bath.

CLEANING
A.

CLEAN UNDER RUNNING WATER AT <38°C

B.

REMOVING DIRT/DEPOSITS

  • Carefully remove all traces of dirt or deposits from the nozzles using the Bien-Air cleaning wire
  • Dry the nozzles with compressed air then dry the rest of the instrument with a cloth

Do not immerse in an ultrasonic cleaner

C.

INTERNAL CLEANING WITH AQUACARE

  • Shake the Aquacare before use
  • Use the Aquacare attachment 1
  • Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Aquacare button down for 2 seconds
  • Use the Aquacare attachment 3
  • Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Aquacare button down for 1 second
D.

INTERNAL AND EXTERNAL CLEANING WITH SPRAYNET

  • Shake the Spraynet before use
  • Use the Spraynet attachment
  • Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Spraynet button down for 1 second
  • Clean the exterior of the contra-angle with a cloth soaked in Spraynet
DISINFECTION
A.

DISINFECTION USING SURFACE DISINFECTANT (follow the manufacturer's instructions for use)

Do not immerse the instrument in a disinfectant bath

OR
B.

THERMAL DISINFECTION (follow the manufacturer's instructions for use)

LUBRICATION
A.

LUBRICATION WITH LUBRIFLUID

  • Shake the Lubrifluid before use
  • Use the Lubrifluid attachment 1
  • Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Lubrifluid button down for 1 second
  • Store immediately: store the instruments with the tip pointing downwards so that any oil residues can flow out
STERILISATION
A.

PLACE THE CONTRA-ANGLE IN A STERILISATION BAG

B.

STERILISE IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS

  • Instruments bearing the "135°C" symbol can be sterilised in an autoclave

Only sterilise instruments which have been cleaned and lubricated
