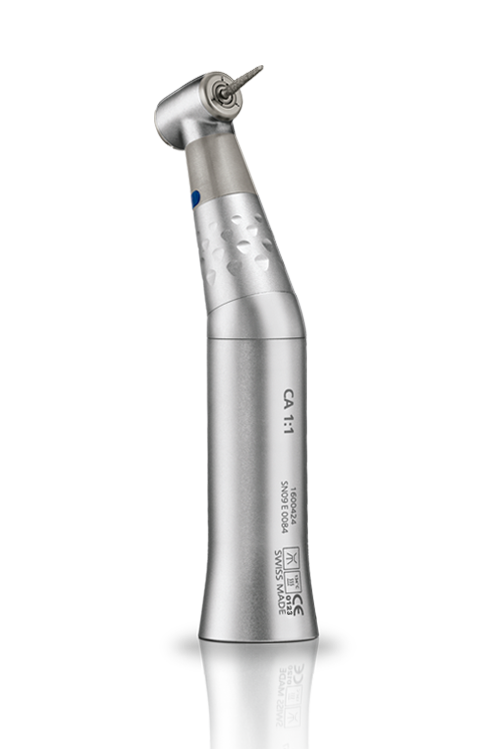

CA 1:1 The Legacy of Reliability.

Rediscover a timeless handpiece. With close to 30 years of existence, the durability of the CA 1:1 is beyond compare. Designed with cutting-edge innovation, it offers unrivalled precision guaranteed to last for years. Thanks to the CA 1:1 contra-angle, Bien-Air quality is now at your fingertips.

Reference:

3+1 Classic CA 1:1L Slowspeed Handpiece 1600384-001 SET

Classic CA 1:1L Slowspeed Handpiece 1600384-001

Classic CA 1:1 Slowspeed Handpiece 1600424-001

Micro-Series. Welcome to a New Dimension.

Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30% shorter and 23% lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.

MicroSeries
MicroSeries

AccuSpray3

Accu-Spray Sep.3 with dualook™ illumination

This ultra-precise nebulization system is composed of three separate air and water sprays providing comprehensive cooling to the bur and treatment site. Combined with two dualook™ multi-strand optical glass conductors, unobscured intraoral visibility is guaranteed from wider angles.


AccuChuck

Accu-Chuck™ bur-locking and rotation drive mechanism

This proven bur-locking and vibration-canceling system vouches for optimal stability and precision, no matter the rotational speed. Assembled with Bien-Air's Soft Push™ button, bur release is quick and easy.


SoftPush

Soft Push

Bien-Air’s unique push-button insert locking mechanism. Light pressure is all that is needed. Bur changing is quick and comfortable. This mechanism guarantees firm yet precise locking.

Technical Data

Classic CA 1:1L Slowspeed Handpiece Classic CA 1:1 Slowspeed Handpiece
Transmission ratio1:11:1
Maximum speed (rpm)40’00040’000
Head--
Head diameter (mm)9.89.8
Head size (mm)15.315.3
Weight (g)8686
Noise level (dBa)5757
Spray system2 x 3 separate air/water sprays 2 x 3 separate air/water sprays
Lighting systemMulti-strand optical glass technology -
Anti-heating system--
Coupling systemISO 3964 & Bien-Air Micro-SeriesISO 3964 & Bien-Air Micro-Series
Warranty2 to 3  years12 to 3  years1
Reference Classic CA 1:1L Slowspeed Handpiece 1600384-001 Classic CA 1:1 Slowspeed Handpiece 1600424-001
Classic CA 1:1L Slowspeed Handpiece
Transmission ratio 1:1
Maximum speed (rpm) 40’000
Head -
Head diameter (mm) 9.8
Head size (mm) 15.3
Weight (g) 86
Noise level (dBa) 57
Spray system 2 x 3 separate air/water sprays
Lighting system Multi-strand optical glass technology
Anti-heating system -
Coupling system ISO 3964 & Bien-Air Micro-Series
Warranty 2 to 3  years1
Reference Classic CA 1:1L Slowspeed Handpiece 1600384-001
Classic CA 1:1 Slowspeed Handpiece
Transmission ratio 1:1
Maximum speed (rpm) 40’000
Head -
Head diameter (mm) 9.8
Head size (mm) 15.3
Weight (g) 86
Noise level (dBa) 57
Spray system 2 x 3 separate air/water sprays
Lighting system -
Anti-heating system -
Coupling system ISO 3964 & Bien-Air Micro-Series
Warranty 2 to 3  years1
Reference Classic CA 1:1 Slowspeed Handpiece 1600424-001

1 2-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.
