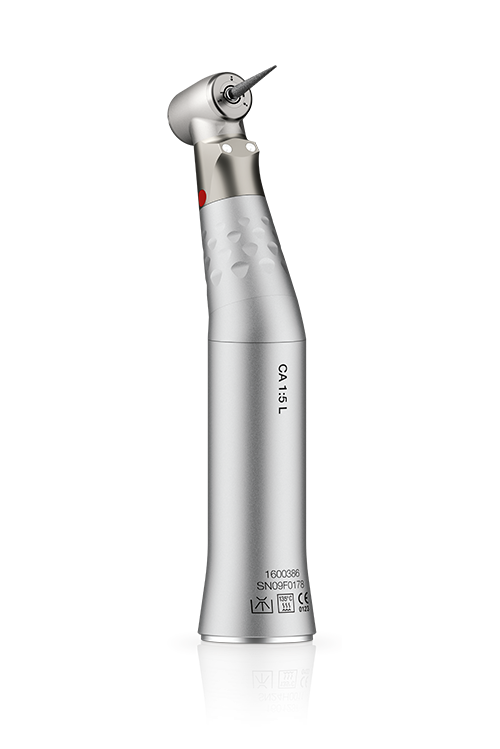

CA 1:5 Heritage of Reliability.

There are some devices still earning respect and admiration forty years in, and Bien-Air's classic CA 1:1 and CA 1:5 electric handpieces are two of them. Forever evolving, their dominating productivity and remarkable durability make them the most popular models in the lineup. The series fully redesigned bur-locking and rotation drive mechanism ensures micron-precise concentricity and stability, while a 60 to 200,000 rpm speed range lets you complete the most intricate restorative work with incredible accuracy and on your own terms. CA 1:1 and CA 1:5 epitomise the reliability and quality on which Bien-Air has built its reputation.

Reference:

Classic CA 1:5 L High-speed Handpiece 1600386-001

Classic CA 1:5 Highspeed Handpiece 1600325-001

Micro-Series. Welcome to a New Dimension.

Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30% shorter and 23% lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.

MicroSeries
MicroSeries

AccuSpray3

Accu-Spray Sep.3 with dualook™ illumination

This ultra-precise nebulization system is composed of three separate air and water sprays providing comprehensive cooling to the bur and treatment site. Combined with two dualook™ multi-strand optical glass conductors, unobscured intraoral visibility is guaranteed from wider angles.


AccuChuck

Accu-Chuck™ bur-locking and rotation drive mechanism

This proven bur-locking and vibration-canceling system vouches for optimal stability and precision, no matter the rotational speed. Assembled with Bien-Air's Soft Push™ button, bur release is quick and easy.


CoolTouchPlus

Cool Touch™ safety

Conveniently integrated into the head’s push button, this patented anti-heating technology is designed to maintain the instrument’s head at a safe temperature, thereby significantly decreasing patient burn injuries.


SoftPush

Soft Push

Bien-Air’s unique push-button insert locking mechanism. Light pressure is all that is needed. Bur changing is quick and comfortable. This mechanism guarantees firm yet precise locking.

Technical Data

Classic CA 1:5 L High-speed Handpiece Classic CA 1:5 Highspeed Handpiece
Transmission ratio1:5 1:5
Maximum speed (rpm)200’000200’000
Head--
Head diameter (mm)9.89.8
Head size (mm)15.5 (22.9 mm with bur 19 mm)15.5 (22.9 mm with bur 19 mm)
Weight (g)9090
Noise level (dBa)5858
Spray system2 x 3 separate air/water sprays2 x 3 separate air/water sprays
Lighting systemMulti-strand optical glass technology-
Coupling systemISO 3964 & Bien-Air Micro-SeriesISO 3964 & Bien-Air Micro-Series
Warranty2 to 3  years 12 to 3  years 1
Reference Classic CA 1:5 L High-speed Handpiece 1600386-001 Classic CA 1:5 Highspeed Handpiece 1600325-001
Classic CA 1:5 L High-speed Handpiece
Transmission ratio 1:5
Maximum speed (rpm) 200’000
Head -
Head diameter (mm) 9.8
Head size (mm) 15.5 (22.9 mm with bur 19 mm)
Weight (g) 90
Noise level (dBa) 58
Spray system 2 x 3 separate air/water sprays
Lighting system Multi-strand optical glass technology
Coupling system ISO 3964 & Bien-Air Micro-Series
Warranty 2 to 3  years 1
Reference Classic CA 1:5 L High-speed Handpiece 1600386-001
Classic CA 1:5 Highspeed Handpiece
Transmission ratio 1:5
Maximum speed (rpm) 200’000
Head -
Head diameter (mm) 9.8
Head size (mm) 15.5 (22.9 mm with bur 19 mm)
Weight (g) 90
Noise level (dBa) 58
Spray system 2 x 3 separate air/water sprays
Lighting system -
Coupling system ISO 3964 & Bien-Air Micro-Series
Warranty 2 to 3  years 1
Reference Classic CA 1:5 Highspeed Handpiece 1600325-001

1 2-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.
