40% shorter and 33% lighter
Adjustable LED light
The smallest and lightest brushless micromotor
3 Year Standard Warranty
Compatible with Micro-Series
Gold connect
Up to 40% shorter and 33% lighter.
With adjustable LED light, it is the smallest and lightest brushless micromotor ever designed by Bien-Air.
Use it with the new Micro-Series instruments to create a micromotor/instrument assembly that's even smaller than a turbine. This guarantees unbeatable performance.
With the MCX and Micro-Series, you benefit from unprecedented grip and balance, guaranteeing more precise control and less fatigue at the end of the day.
Thanks to its Smart Logic electronic control, power automatically adapts to variations in pressure.
This means precise and constant power without the slightest jolt.
Its lifetime-lubricated ball bearings make the MCX maintenance-free.
Up to 40% shorter and 33% lighter.
With adjustable LED light, it is the smallest and lightest brushless micromotor ever designed by Bien-Air.
Use it with the new Micro-Series instruments to create a micromotor/instrument assembly that's even smaller than a turbine. This guarantees unbeatable performance.
With the MCX and Micro-Series, you benefit from unprecedented grip and balance, guaranteeing more precise control and less fatigue at the end of the day.
Thanks to its Smart Logic electronic control, power automatically adapts to variations in pressure.
This means precise and constant power without the slightest jolt.
Its lifetime-lubricated ball bearings make the MCX maintenance-free.
40% shorter and 33% lighter
Adjustable LED light
The smallest and lightest brushless micromotor
3 Year Standard Warranty
Technical Data
Technical Data

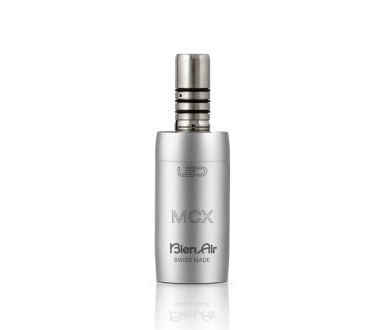

MCX LED Micromotor
MX-i LED
MX-i LED 3rd GEN
MX2 PLUS LED
Applications
Restorative, Prophylaxis
Implantology, Surgery
Implantology
Restorative, Prophylaxis, Endodontics
Type
Brushless, internal spray
Brushless, autoventilated
Brushless, non ventilated
Brushless, internal spray
Speed range
100*-40,000 rpm
100-40,000 rpm
100-40,000 rpm
100-40,000 rpm
Max torque
2.5 Ncm
6 Ncm
6 Ncm
3.5 Ncm
Torque control
Yes
Yes
Yes
Yes
Weight (g)
76 g
115 gr
110 g
79 gr
Dimensions
Ø 21 x 42 mm**
Ø 23 x 69 mm*
Ø 23 x 62 mm*
Ø 21 x 44 mm*
Light
LED with adjustable intensity
LED with adjustable intensity
LED with adjustable intensity
LED with adjustable intensity
Max noise level, compliant with ISO 14457
51 dBA
53 dBA
53 dBA
51 dBA
Sterilisable
Yes
Yes + thermal desinfector
Yes + thermal desinfector
Yes
Ball bearings
Life-time lubricated ball bearings
Life-time lubricated ball bearings
Life-time lubricated ball bearings
Life-time lubricated ball bearings
Hose rotation
400°
0°
0°
400°
Warranty
3 to 4 years 1
3 to 4 years 1
3 to 4 years 1
3 years
Reference
MCX LED Micromotor 1600751-001
MCX | Without light 1600780-001
MX-i LED 1600755-001
MX-i LED 3rd GEN 1601008-001
MX2 PLUS LED 1600677-001
MCX LED Micromotor
Applications
Restorative, Prophylaxis
Type
Brushless, internal spray
Speed range
100*-40,000 rpm
Max torque
2.5 Ncm
Torque control
Yes
Weight (g)
76 g
Dimensions
Ø 21 x 42 mm**
Light
LED with adjustable intensity
Max noise level, compliant with ISO 14457
51 dBA
Sterilisable
Yes
Ball bearings
Life-time lubricated ball bearings
Hose rotation
400°
Warranty
3 to 4 years 1
Reference
MCX LED Micromotor 1600751-001
MCX | Without light 1600780-001
