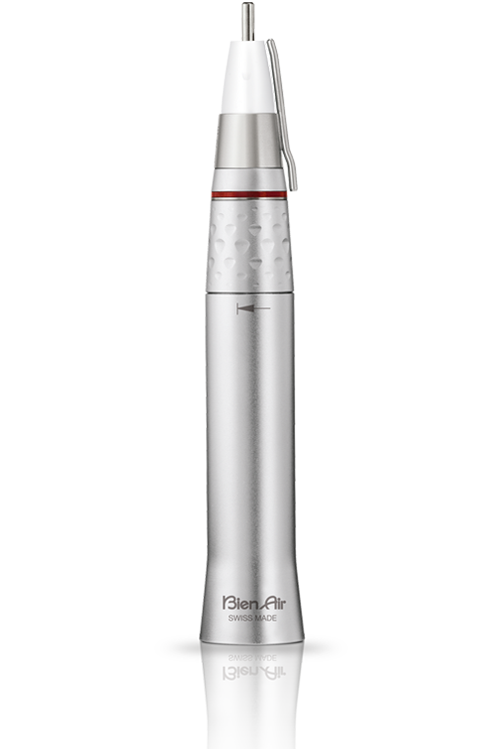

PM 1:2 Bien-Air’s PM 1:2 Impaction Drill.
Unfaltering Precision
for Enduring Performance.

A best seller in oral maxillofacial surgery, the PM 1:2 is the epitome of what Bien-Air’s Swiss precision brings to uncompromised quality and reliability. Newly improved infection control features position this straight handpiece at the forefront of patient safety and, in turn, afford it with significantly prolonged service life. With Bien-Air’s PM 1:2, confidently dispose of all uncertainties and get ready to outperform yourself.

Safe and Durable.Aside from its primary function of thoroughly cooling the operative field, the PM 1:2’s external irrigation system – with sterile disposable tubing – complies with the highest hygiene standards in oral surgery. Complemented with a new single-use bur guard preventing fluid infiltration in both the shank and the motor, the risk of overheating and premature handpiece failure is significantly minimized.

Practical and Ergonomic. The optimal diameter and height of the PM 1:2’s promotes near unobstructed intraoral visibility and makes for a less invasive approach to extract impacted molars.

Fast and Reliable. When used with Bien-Air’s prize-winning line of micromotors, the PM 1:2 allows for shorter procedure times, reduced discomfort for patients, and higher practice productivity. The most advanced engineering techniques, skilled company know-how, and up to 2 years* of warranty put in your hands the first-class dependability our competitors have been trying to replicate for over 50 years.

Use the PM 1:2 handpiece with Bien-Air’s revolutionary iChiropro system to enjoy greater power control, pre-programmed operating sequences, multi-user settings, and patient data storage.

Learn More

Reference:

PM 1:2 1600436-001

Technology

Technical Data

Download Data

Maintenance

Technology

Advantages OF PM 1:2

Recommended procedures:

Implant + Oral Surgery + Endo applications including third molar extractions
Torque in Implant modeup to 55 Ncm Torque for surgical applicationsup to 5.8 Ncm
Torque Control
Auto-Reverse & Auto-forward (Endo mode)
MX-i LED motor compatible with all E-type handpieces i.e : CA 20:1 implant / 1:2 Surgical / 1:5 Periodontology / 8:1 endo
Autoclavable (MX-i LED micromotor)
Self-ventillated technology (MX-i LED micromotor)
LED Light (MX-i LED micromotor)
PM 1:2 supports universal burs
PM 1:2 Speed rangeup to 80,000 rpm
MX-i LED micromotor Warranty 2 years

Cutting time

The high rotational speed reduces cutting time by 70 % (12 seconds to completely sec- tion a tooth), while significantly reducing the force required.

Bur guard Technology

The PM 1:2 is also equipped with a bur guard preventing fluid infiltration in both the handpiece and the motor. The risk of overheating and premature handpiece failure is significantly minimized.

Free move

Freedom of movement for optimum working comfort. Thanks to its flexible and light rotating coupling, the Bien-Air handpiece / micromotor/hose combination will prove a pleasant work companion day in and day out.

Technical Data

	PM 1:2
Type	Straight handpiece
Transmission ratio	1:2
Speed range	200-80,000 rpm
External irrigation	On detachable sleeve
Detachable sleeves	With irrigation tube, supplied with each instrument and Bur Guard sterile sleeve
Coupling	Type E as per ISO 3964
Locking system	Locking ring
Bur dimension	ø 2.35 mm / type 2, as per ISO 1797
Cleaning / sterilisation	Thermo Washer Disinfectable/Steam autoclave up to 135 °C
Warranty	1 year
Accessories	Sleeve with irrigation hose 1501318-001 Bur guard sterile sleeve 1501317-100
Reference	PM 1:2 1600436-001

PM 1:2
Type	Straight handpiece
Transmission ratio	1:2
Speed range	200-80,000 rpm
External irrigation	On detachable sleeve
Detachable sleeves	With irrigation tube, supplied with each instrument and Bur Guard sterile sleeve
Coupling	Type E as per ISO 3964
Locking system	Locking ring
Bur dimension	ø 2.35 mm / type 2, as per ISO 1797
Cleaning / sterilisation	Thermo Washer Disinfectable/Steam autoclave up to 135 °C
Warranty	1 year
Accessories	Sleeve with irrigation hose 1501318-001 Bur guard sterile sleeve 1501317-100
Reference	PM 1:2 1600436-001

Download Data

Downloads

Maintenance

Download

Maintenance of contra-angles

PREPARATION

REMOVING THE INSTRUMENT

Remove the rotary instrument from the chuck mechanism
Disconnect the contra-angle from the motor

PRE-DISINFECTION

External disinfection

Do not immerse the instrument in a disinfectant bath.

CLEANING

CLEAN UNDER RUNNING WATER AT <38°C

REMOVING DIRT/DEPOSITS

Carefully remove all traces of dirt or deposits from the nozzles using the Bien-Air cleaning wire
Dry the nozzles with compressed air then dry the rest of the instrument with a cloth

Do not immerse in an ultrasonic cleaner

INTERNAL AND EXTERNAL CLEANING WITH SPRAYNET

Shake the Spraynet before use
Use the Spraynet attachment 1
Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Spraynet button down for 1 second
Clean the exterior of the contra-angle with a cloth soaked in Spraynet

DISINFECTION

DISINFECTION USING SURFACE DISINFECTANT (follow the manufacturer's instructions for use)

Do not immerse the instrument in a disinfectant bath

THERMAL DISINFECTION (follow the manufacturer's instructions for use)

LUBRICATION

LUBRICATION WITH LUBRIFLUID

Shake the Lubrifluid before usen
Use the Lubrifluid attachment 1
Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Lubrifluid button down for 1 second
Store immediately: store the instruments with the tip pointing downwards so that any oil residues can flow out

STERILISATION
