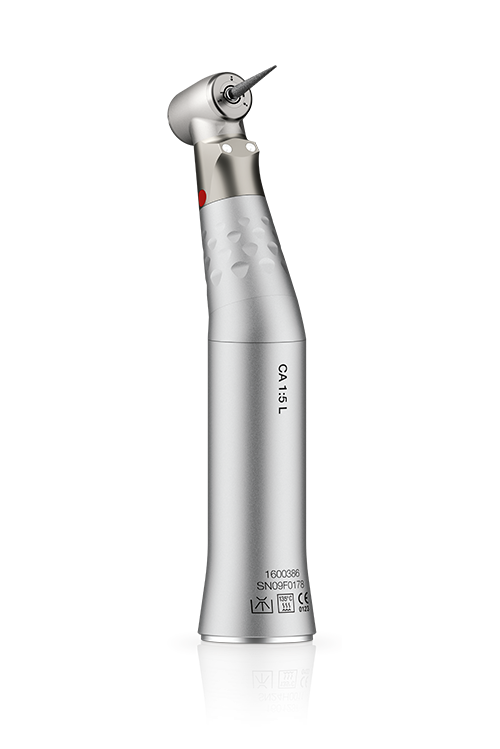

Classic CA 1:5 Heritage of Reliability.

There are some devices still earning respect and admiration forty years in, and Bien-Air’s classic CA 1:1 and CA 1:5 electric handpieces are two of them. Forever evolving, their dominating productivity and remarkable durability make them the most popular models in the lineup. The series’ fully redesigned bur-locking and rotation drive mechanism ensures micron-precise concentricity and stability, while a 60 to 200,000 rpm speed range lets you complete the most intricate restorative work with incredible accuracy – and on your own terms. CA 1:1 and CA 1:5 epitomize the reliability and quality Bien-Air has built its reputation on.

Reference:

CA 1:5 L Micro-Series 1600690-001

Classic CA 1:5L Highspeed Handpiece 1600386-001

Classic CA 1:5 Highspeed Handpiece 1600325-001

Micro-Series. Welcome to a New Dimension.

Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30% shorter and 23% lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.

MicroSeries
MicroSeries

AccuSpray3

Accu-Spray Sep.3 with dualook™ illumination

This ultra-precise nebulization system is composed of three separate air and water sprays providing comprehensive cooling to the bur and treatment site. Combined with two dualook™ multi-strand optical glass conductors, unobscured intraoral visibility is guaranteed from wider angles.


AccuChuck

Accu-Chuck™ bur-locking and rotation drive mechanism

This proven bur-locking and vibration-canceling system vouches for optimal stability and precision, no matter the rotational speed. Assembled with Bien-Air's Soft Push™ button, bur release is quick and easy.


CoolTouchPlus

Cool Touch™ safety

Conveniently integrated into the head’s push button, this patented anti-heating technology is designed to maintain the instrument’s head at a safe temperature, thereby significantly decreasing patient burn injuries.


SoftPush

Soft Push

Bien-Air’s unique push-button insert locking mechanism. Light pressure is all that is needed. Bur changing is quick and comfortable. This mechanism guarantees firm yet precise locking.

Technical Data

Classic CA 1:5L Highspeed Handpiece Classic CA 1:5 Highspeed Handpiece
Transmission ratio1:5 1:5
Maximum speed (rpm)200’000200’000
Head--
Head diameter (mm)9.89.8
Head size (mm)15.5 (22.9 mm with bur 19 mm)15.5 (22.9 mm with bur 19 mm)
Weight (g)9090
Noise level (dBa)5858
Spray system2 x 3 separate air/water sprays2 x 3 separate air/water sprays
Lighting systemMulti-strand optical glass technology-
Coupling systemISO 3964 & Bien-Air Micro-SeriesISO 3964 & Bien-Air Micro-Series
Warranty2 to 3  years 12 to 3  years 1
Reference Classic CA 1:5L Highspeed Handpiece 1600386-001 Classic CA 1:5 Highspeed Handpiece 1600325-001
Classic CA 1:5L Highspeed Handpiece
Transmission ratio 1:5
Maximum speed (rpm) 200’000
Head -
Head diameter (mm) 9.8
Head size (mm) 15.5 (22.9 mm with bur 19 mm)
Weight (g) 90
Noise level (dBa) 58
Spray system 2 x 3 separate air/water sprays
Lighting system Multi-strand optical glass technology
Coupling system ISO 3964 & Bien-Air Micro-Series
Warranty 2 to 3  years 1
Reference Classic CA 1:5L Highspeed Handpiece 1600386-001
Classic CA 1:5 Highspeed Handpiece
Transmission ratio 1:5
Maximum speed (rpm) 200’000
Head -
Head diameter (mm) 9.8
Head size (mm) 15.5 (22.9 mm with bur 19 mm)
Weight (g) 90
Noise level (dBa) 58
Spray system 2 x 3 separate air/water sprays
Lighting system -
Coupling system ISO 3964 & Bien-Air Micro-Series
Warranty 2 to 3  years 1
Reference Classic CA 1:5 Highspeed Handpiece 1600325-001

1 2-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.

Maintenance

Maintenance of contra-angles

PREPARATION
A.

REMOVING THE INSTRUMENT

  • Remove the rotary instrument from the chuck mechanism
  • Disconnect the contra-angle from the motor
B.

PRE-DISINFECTION

  • External disinfection

Do not immerse the instrument in a disinfectant bath.

CLEANING
A.

CLEAN UNDER RUNNING WATER AT <38°C

B.

REMOVING DIRT/DEPOSITS

  • Carefully remove all traces of dirt or deposits from the nozzles using the Bien-Air cleaning wire
  • Dry the nozzles with compressed air then dry the rest of the instrument with a cloth

Do not immerse in an ultrasonic cleaner

C.

INTERNAL AND EXTERNAL CLEANING WITH SPRAYNET

  • Shake the Spraynet before use
  • Use the Spraynet attachment 1
  • Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Spraynet button down for 1 second
  • Clean the exterior of the contra-angle with a cloth soaked in Spraynet
DISINFECTION
A.

DISINFECTION USING SURFACE DISINFECTANT (follow the manufacturer's instructions for use)

Do not immerse the instrument in a disinfectant bath

OR
B.

THERMAL DISINFECTION (follow the manufacturer's instructions for use)

LUBRICATION
A.

LUBRICATION WITH LUBRIFLUID

  • Shake the Lubrifluid before usen
  • Use the Lubrifluid attachment 1
  • Keep the tip of the instrument pointing down and protect with an absorbent cloth; press the Lubrifluid button down for 1 second
  • Then, run an operating test for 30 seconds at low speed to remove any surplus lubricant
  • Store immediately: store the instruments with the tip pointing downwards so that any oil residues can flow out
STERILISATION
A.

PLACE THE CONTRA-ANGLE IN A STERILISATION BAG

B.

STERILISE IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS

  • Instruments bearing the "135°C" can be sterilised in an autoclave

Only sterilise instruments which have been cleaned and lubricated
