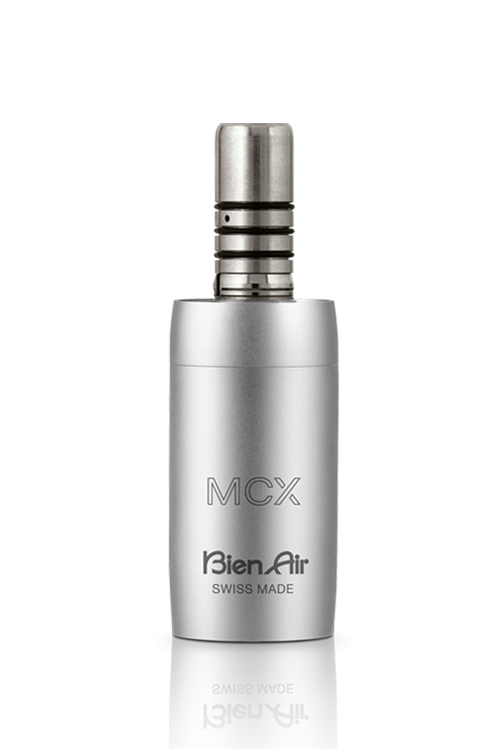

MCX LED

Up to 40% shorter and 33% lighter. With adjustable LED light, it is the smallest and lightest brushless micromotor ever designed by Bien-Air. Use it with the new Micro-Series instruments for a micromotor/instrument assembly that's even smaller than a turbine, guaranteeing unbeatable performance. With the MCX and Micro-Series you benefit from unprecedented grip and balance, guaranteeing more precise control and less fatigue at the end of the day. Thanks to its Smart Logic electronic control, power automatically adapts to variations in pressure. This means precise and constant power without the slightest jolt. Its lifetime-lubricated ball bearings make the MCX maintenance-free. 3 Years Warranty.

Reference:

MCX LED Micromotor 1600751-001

MCX without light 1600780-001

HOW DO MCX BRUSHLESS MICROMOTOR WORK?

Like any other electric micromotor, brushless micromotors consist of a rotor and a stator. Unlike the brush micromotor, the rotor consists of a permanent magnet, while the coils are mounted to the stator. The mechanical switching function, implemented by the brush and collector combination in a carbon brush-type micromotor, is replaced by a sophisticated electronic drive that became possible only with the development of high-speed and powerful microprocessors. The electronic drive creates a rotating electric field in the stator that interacts with the permanent magnet.

Brushless


Brushless technology, a new dimension

  • Greater Power and More Torque. A major attribute of Bien-Air micromotors is their elevated power output with constant torque for swift and effortless use.
  • Accurate Command. The proprietary Smart Logic™ electronic control lends Bien-Air micromotors a step-less, vibration-less rotation for the most meticulous and precise dental work.
  • Compact and Lightweight. Bien-Air micromotors are significantly shorter and lighter than conventional models. This results in optimal grip and balance as well as reduced hand fatigue.
  • Maintenance-Free. Bien-Air micromotors’ ball bearings are greased for life making post-usage lubrication expendable. Built to withstand repeated sterilization cycles, the strictest hygiene standards are upheld.
  • Easy and economical to maintain
  • 3 Years Warranty
Graphic_BA_EN_iOPTIMA_MX2



Micro-series. Welcome to a new dimension.

Bien-Air’s new generation Micro-Series models ally innovation with compact design, resulting in improved power and maneuverability. Up to 30 percent shorter and 23 percent lighter than traditional models, they have an easy grasp that allows for optimal work comfort with less strain on the hand, arm, and shoulder.

MicroSeries
balanceMicroSeries



Noise levels reduced and less vibrations

A Bien-Air electric micromotor reduces noise levels by 2 compared to an air turbine. This greatly decreases patient anxiety and discomfort and allows the dentist to work more efficiently. It also vibrates considerably less. This offers greater cutting precision and a smoother finish.

Graph_NoiseLevel
Graph_Vibration

Technical Data

MCX LED Micromotor MX-i LED MX-i LED PLUS MX2 LED Micromotor
ApplicationsRestorative, Prophylaxis ImplantologyImplantology, SurgeryRestorative, Prophylaxis, Endodontics
TypeBrushless, internal sprayBrushless, non ventilatedBrushless, autoventilatedBrushless, internal spray
Speed range100*-40,000 rpm100-40,000 rpm100-40,000 rpm100-40,000 rpm
Max torque2.5 Ncm 6 Ncm6 Ncm3.5 Ncm
Torque controlYesYesYesYes
Weight (g)79 g110 g115 gr79 gr
Dimensions Ø 21 x 42 mmØ 23 x 83 mmØ 23 x 91 mmØ 21 x 44 mm
LightLED with adjustable intensityLED with adjustable intensityLED with adjustable intensityLED with adjustable intensity
Max noise level, compliant with ISO 1149851 dBA53 dBA53 dBA51 dBA
Sterilisable Yes Yes + thermal desinfectorYes + thermal desinfectorYes
Ball bearingsLife-time lubricated ball bearingsLife-time lubricated ball bearingsLife-time lubricated ball bearingsLife-time lubricated ball bearings
Hose rotation400° ± 400°
Warranty3 to 4 years 13 to 4 years 13 to 4 years 13 years
Reference MCX LED Micromotor 1600751-001
MCX without light 1600780-001
MX-i LED 1600755-001 MX-i LED PLUS 1601008-001 MX2 LED Micromotor 1600677-001
MCX LED Micromotor
Applications Restorative, Prophylaxis
Type Brushless, internal spray
Speed range 100*-40,000 rpm
Max torque 2.5 Ncm
Torque control Yes
Weight (g) 79 g
Dimensions Ø 21 x 42 mm
Light LED with adjustable intensity
Max noise level, compliant with ISO 11498 51 dBA
Sterilisable Yes
Ball bearings Life-time lubricated ball bearings
Hose rotation 400°
Warranty 3 to 4 years 1
Reference MCX LED Micromotor 1600751-001
MCX without light 1600780-001
MX-i LED
Applications Implantology
Type Brushless, non ventilated
Speed range 100-40,000 rpm
Max torque 6 Ncm
Torque control Yes
Weight (g) 110 g
Dimensions Ø 23 x 83 mm
Light LED with adjustable intensity
Max noise level, compliant with ISO 11498 53 dBA
Sterilisable Yes + thermal desinfector
Ball bearings Life-time lubricated ball bearings
Hose rotation
Warranty 3 to 4 years 1
Reference MX-i LED 1600755-001
MX-i LED PLUS
Applications Implantology, Surgery
Type Brushless, autoventilated
Speed range 100-40,000 rpm
Max torque 6 Ncm
Torque control Yes
Weight (g) 115 gr
Dimensions Ø 23 x 91 mm
Light LED with adjustable intensity
Max noise level, compliant with ISO 11498 53 dBA
Sterilisable Yes + thermal desinfector
Ball bearings Life-time lubricated ball bearings
Hose rotation
Warranty 3 to 4 years 1
Reference MX-i LED PLUS 1601008-001
MX2 LED Micromotor
Applications Restorative, Prophylaxis, Endodontics
Type Brushless, internal spray
Speed range 100-40,000 rpm
Max torque 3.5 Ncm
Torque control Yes
Weight (g) 79 gr
Dimensions Ø 21 x 44 mm
Light LED with adjustable intensity
Max noise level, compliant with ISO 11498 51 dBA
Sterilisable Yes
Ball bearings Life-time lubricated ball bearings
Hose rotation ± 400°
Warranty 3 years
Reference MX2 LED Micromotor 1600677-001

1 3-year standard warranty and 1-year optional warranty available through Bien-Air’s PlanCare extended warranty program.

*depending on the motor driver.
